[Production Capacity:10-60t/h]
[Feeding Size: 0.15-2m]
[Handing Materials: tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, titanium, manganese, iron ore, coal, etc]

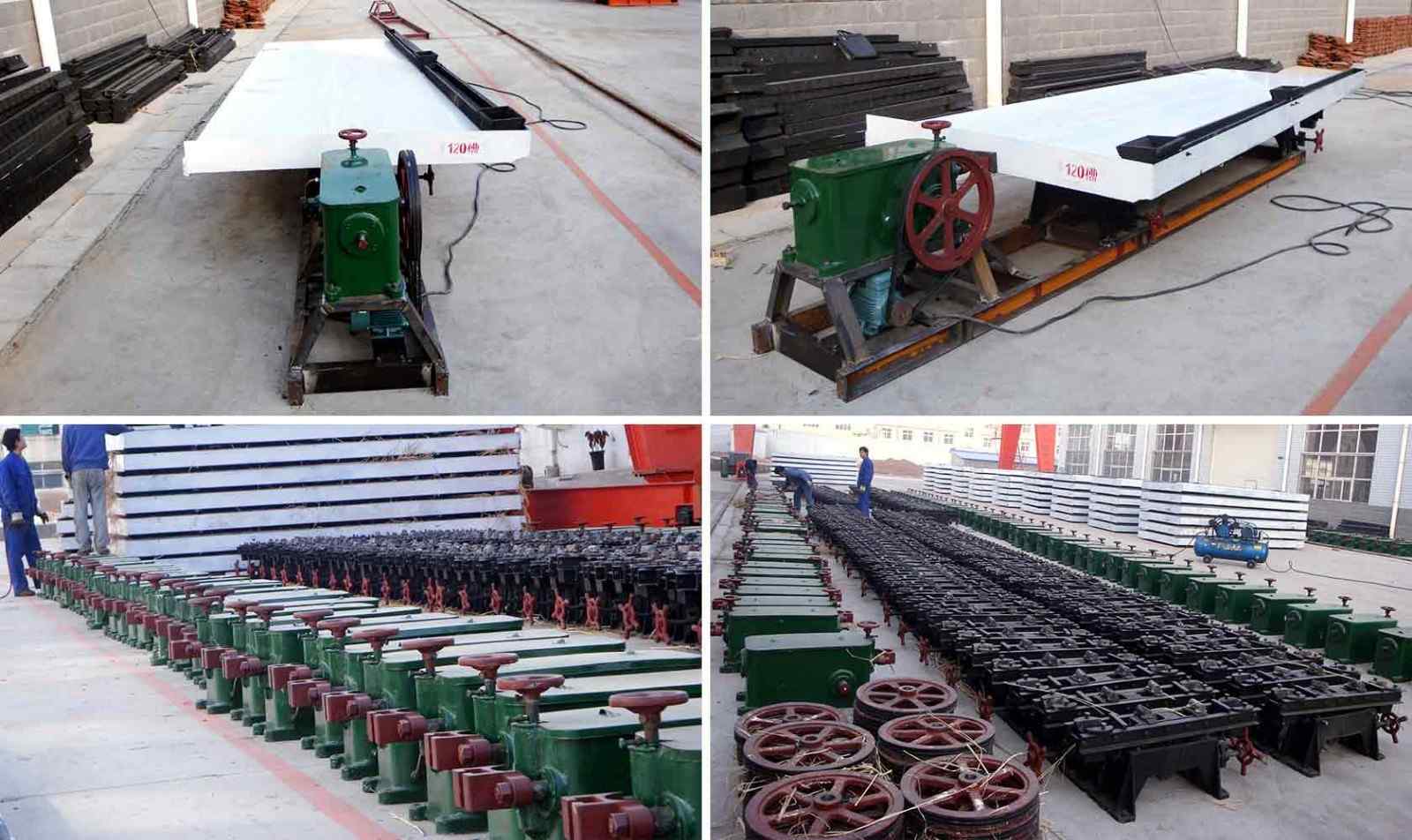

Shaking table separation is the most widely used and the most effective separation equipment in the gravity concentrator. As an independent beneficiation method to use, gold shaking table also can be combined with other beneficiation methods such as select flotation and magnetic separation or other beneficiation equipment such as centrifugal separator, spiral concentrator, belt chute, etc.
The maximum beneficiation concentration ratio can attain more than 300 times.
Final concentrate and discarded tailing can be obtained through one time separation.
Multiple products can be gained at one time according to your needs.
Obvious mineral zoning in the table surface contributes to the convenient adjustment, observation and receive.
| Name | Grit concentrator table |
Fine sand concentrator table |
Sludge concentrator table |
|
| Bed surface Dimensions |
Length (mm) |
4450 | 4450 | 4450 |
| Driving part Width (mm) |
1855 | 1855 | 1855 | |
| Concentrate part Width (mm) |
1546 | 1546 | 1546 | |
| Max.feeding size(mm) |
2 | 0.5 | 0.15 | |
| Feeding amount (t/d) |
30-60 | 10-20 | 15-25 | |
| Feeding thickness (%) |
25-30 | 20-25 | 15-25 | |
| Stroke (mm) |
16-22 | 11-16 | 8-16 | |
| Frequency (f) |
45-48 | 48-53 | 50-57 | |
| Bed surface Water quantity (t/d) |
80-150 | 30-60 | 10-17 | |
| Bed surface Horizontal obliquity(°) |
2.5-4.5 | 1.5-3.5 | 1-2 | |
| Bed surface Portrait obliquity(%) |
1.4 | 0.92 | ---- | |
| Table board corner(°) |
32-42 | 40 | 42 | |
| Concentrating area(㎡) |
7.6 | 7.6 | 7.6 | |
| Bed surface Length ratio |
2.6 | 2.6 | 2.6 | |
| Shape of side-bed surface |
Rectangle | Zigzag | Triangle | |
| Motor power(kw) |
1.1 | 1.1 | 1.1 | |
| Transmission device |
Eccentricity Linkage | |||
| Name | Max.feeding size（mm） |
Bed surface Water quantity （t/d） |
| Grit concentrator table |
2 | 80-150 |
| Fine sand concentrator table |
0.5 | 30-60 |
| Sludge concentrator table |
0.15 | 10-17 |
Note:Processing Capacity May Vary With Different materials and Feeding Sizes.
