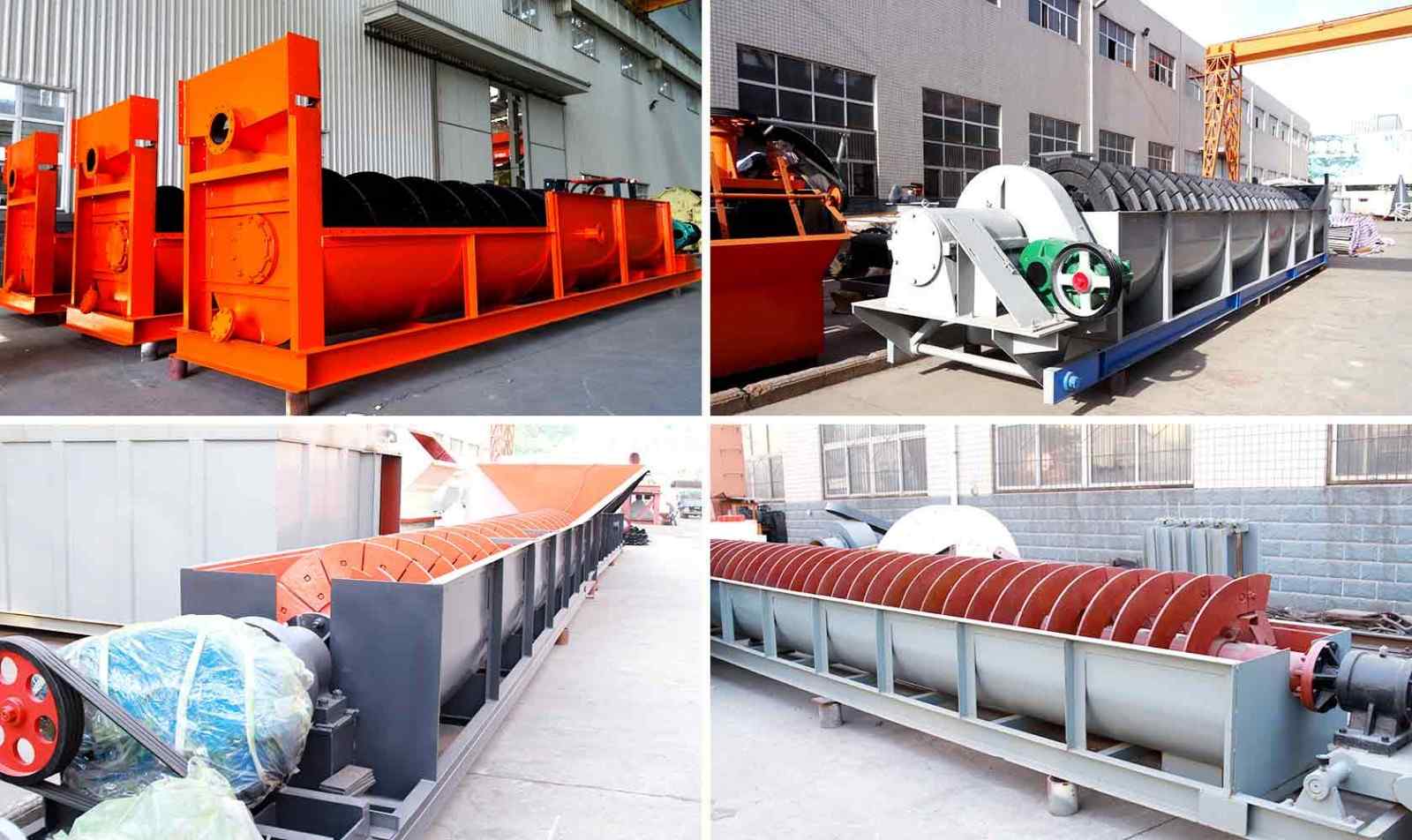

SPIRAL CLASSIFIER

Detailed content

Leave A Message

[Production Capacity: 0.15-6t/h]

[Feeding Size: 0.3-3m]

[Handing Materials: iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, tungsten, tin, tantalum, niobium, etc]

Welcome To FTM. Scrolls Are Cheap.

Introduction

Spiral classifier is used in the beneficiation production line after the ball mill for the materials classification, desliming and washing effect according to the principle of different solid materials proportion and the sedimentation rate. Spiral gold separator has a wide material application range including the metallic mineral such as gold, iron, molybdenum ore, copper, silver and tin and other materials such as quartz, limestone, cement clinker, fine mud.

Highlight Advantages

Simple Operation:

With the systematized structure design and proper component configuration, the spiral gold separator has more simple operation and 100% improvement on security.

Long Working Life:

Made of the wearable German introduced tiling line and superior steel in its pedestal and engine body, the screw classifier has a more reliable quality and a 3-5 years using life extension.

Perfect Classification Effect:

It has advantages of high washing cleanliness and perfect classification effect. It can effectively select materials to different classifications and control the stone powder quality easily.

Affordable Price:

Having about 5%-6% lower price than the same type productions, the screw classifier has a higher cost performance.

Send Inquiry

Technical data

Model	Spiral Diameter (mm)	Trough Length (mm)	Spiral rotate speed (r/min)	Processing capacity（t/d）		Motor Power （kw ≤）		Dimensions （mm≤）			Total weight （t）
Model	Spiral Diameter (mm)	Trough Length (mm)	Spiral rotate speed (r/min)	Sand -return	Overflow	For driving	For lifting	Length	Width	Height	≤
FG-3	300	3000	12-30	80-150	20	1.1	----	3850	490	1140	0.7
FG-5	500	4500	8-12.5	135-210	32	1.1	----	5430	680	1480	1.9
FG-7	750	5500	6-10	340-570	65	3	----	6720	980	1820	3.1
FG-10	1000	6500	5-8	675-1080	110	5.5	----	7590	1240	2380	4.9
FC-10	1000	8400	5-8	675-1080	85	7.5	----	9600	1240	2680	6.2
FG-12	1200	6500	4-6	1170-1870	155	7.5	2.2	8180	1570	3110	8.5
FC-12		8400		1170-1870	120	7.5	2.2	10370	1540	3920	11.0
2FG-12		6500		2340-3740	310	15	4.4	8230	2790	3110	15.8
2FC-12		8400		2340-3740	240	15	4.4	10370	2790	3920	17.6
FG-15	1500	8300	4-6	1830-2740	235	7.5	2.2	10410	1880	4080	12.5
FC-15		10500		1830-2740	185	7.5	2.2	12670	1820	4890	16.8
2FG-15		8300		2280-5480	470	15	4.4	10410	3390	4080	22.1
2FC-15		10500		2280-5480	370	15	4.4	12670	3370	4890	30.7
FG-20	2000	8400	3.6-5.5	3290-5940	400	11-15	3	10790	2530	4490	20.5
FC-20		12900		3210-5940	320	11-15	3	15610	2530	5340	28.5
2FG-20		8400		7780-11880	800	22-30	6	11000	4600	4490	35.5
2FC-20		12900		7780-11880	640	22-30	6	15760	4600	5640	48.7
FG-24	2400	9130	3.67	6800	580	15	3	11650	2910	4970	26.8
FC-24		14130		6800	490	18.5	4	16580	2930	7190	41.0
2FG-24		9130		13600	1160	30	6	12710	5430	5690	45.8
2FC-24		14130		13700	910	37	8	17710	5430	8000	67.9
2FG-30	3000	12500	3.2	23300	1785	40	8	16020	6640	6350	73.0
2FC-30	3000	14300	3.2	23300	1410	----	----	17091	----	8680	84.8

Model	Spiral Diameter (mm)	Spiral rotate speed (r/min)
FG-3	300	12-30
FG-5	500	8-12.5
FG-7	750	6-10
FG-10	1000	5-8
FC-10	1000	5-8
FG-12	1200	4-6
FC-12
2FG-12
2FC-12
FG-15	1500	4-6
FC-15
2FG-15
2FC-15
FG-20	2000	3.6-5.5
FC-20
2FG-20
2FC-20
FG-24	2400	3.67
FC-24
2FG-24
2FC-24
2FG-30	3000	3.2
2FC-30	3000	3.2
