[Production Capacity:0.6-52 tpd]
[Feeding Size: ≤25mm]
[Handing Materials: limestone, calcite, calcium carbonate, dolomite, barite, talc, potash feldspar, fly ash, kaolin, quartz, coke, coal gangue, etc.]

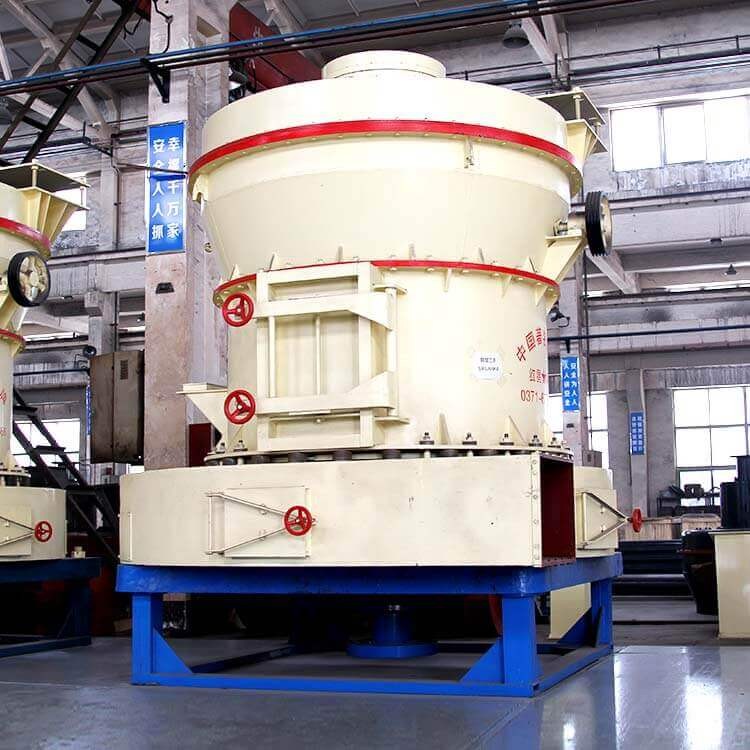

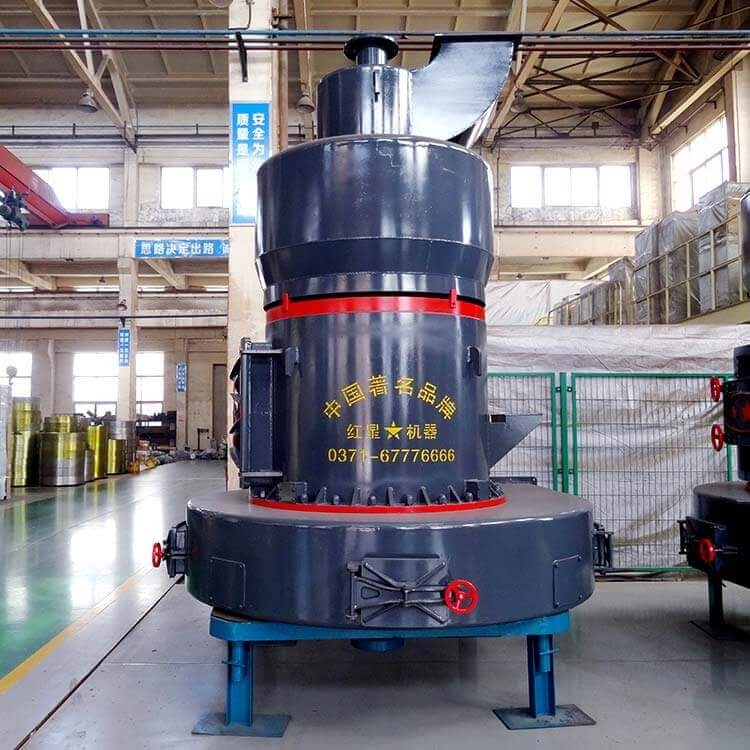

High-strength mill is one of the products of Raymond mill series. High-strength mill is suitable for grinding barite, limestone, ceramics, slag and other non-flammable and explosive mineral, metallurgical, chemical and building materials with Mohs hardness less than 9.3 and humidity less than 6%. The size of finished products is adjusted in the range of 80-425 meshes.

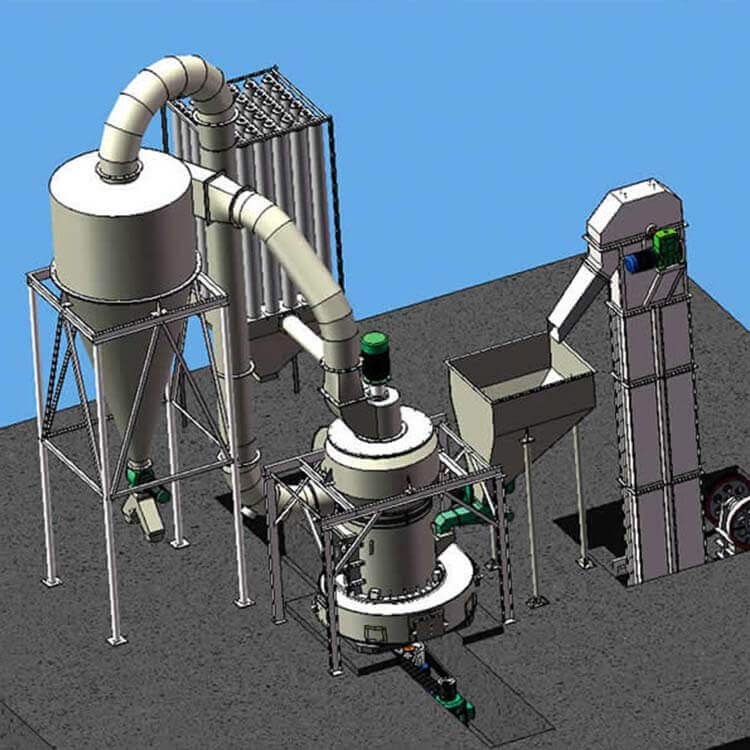

High-strength grinding adopts three-dimensional structure, which covers a small area and has a strong set. It is a production system independently from bulk material to finished powder.
The fineness of the finished powder is uniform and the pass-through screening rate is 99%, which is difficult for other grinding equipment. The electric system adopts centralized control, the mill can basically achieve unattended operation, and maintenance is convenient.
Important parts are made of high-quality steel, wear-resistant parts are made of high-performance wear-resistant materials. The machine has high wear-resistant performance. The transmission device adopts sealed gearbox and pulley, which ensures smooth transmission and reliable operation.
| Parameter Model |
Raymond mill62 | High strength66 | High strength76 | High strength87 | High strength92 | High strength93 | High strength97 | Raymond mill4119 | Raymond mill4525 |
| Feeding size（mm） |
<15 | <15 | <20 | <25 | <25 | <25 | <25 | ≤25 | ≤30 |
| Size of finished product（mm） |
0.173-0.033 | 0.173-0.033 | 0.173-0.033 | 0.173-0.033 | 0.173-0.033 | 0.173-0.033 | 0.173-0.033 | 0.173-0.044 | 0.173-0.044 |
| Shift output of different material fineness(t) |
0.6-9 | 1-20 | 1.5-25 | 2.8-33 | 3-36 | 3.5-40 | 4-52 | 8-78 | 16-176 |
| Rotate speed of central shart（r/min） |
274 | 190 | 170 | 161 | 148 | 140 | 130 | 105 | 82 |
| Diameter of pulverizing ring（mm） |
525 | 725 | 850 | 907.5 | 973 | 1006 | 1050 | 1400 | 1770 |
| Diameter of pulverizing ring（mm） |
150 | 210 | 250 | 270 | 300 | 300 | 310 | 410 | 450 |
| Height of pulverizing roller（mm） |
100 | 150 | 150 | 150 | 160 | 160 | 170 | 190 | 250 |
| Main Motor | 7.5 | 15 | 18.5 | 22 | 30 | 30 | 37 | 75 | 132 |
| Fan Motor | 4-5.5 | 4-11 | 4-15 | 4-18.5 | 4-22 | 2-22 | 4-37 | 4-75 | 4-132 |
| Analyzer Motor | 6-1.1 | 6-2.2 | 6-2.2 | 6-2.2 | 6-2.2 | 6-3 | 4A-5.5 | 4B-7.5 | 4A-18.5 |
| Parameter Model |
Feeding size（mm） |
Size of finished product（mm） |
| High-strength97 | <25 | 0.173-0.033 |
| High-strength93 | <25 | 0.173-0.033 |
| High-strength92 | <25 | 0.173-0.033 |
| High-strength87 | <25 | 0.173-0.033 |
| High-strength76 | <20 | 0.173-0.033 |
| High-strength66 | <15 | 0.173-0.033 |
| High-strength62 | <15 | 0.173-0.033 |
| Raymond mill4119 | ≤25 | 0.173-0.044 |
| Raymond mill4525 | ≤30 | 0.173-0.044 |
Note:Processing Capacity May Vary With Different materials and Feeding Sizes.
