[Production Capacity: 30-800t/h]
[Feeding Size: 300-700mm]
[Handing Materials: limestone, granite, quartz, coal, slag, clay, construction waste, etc.]

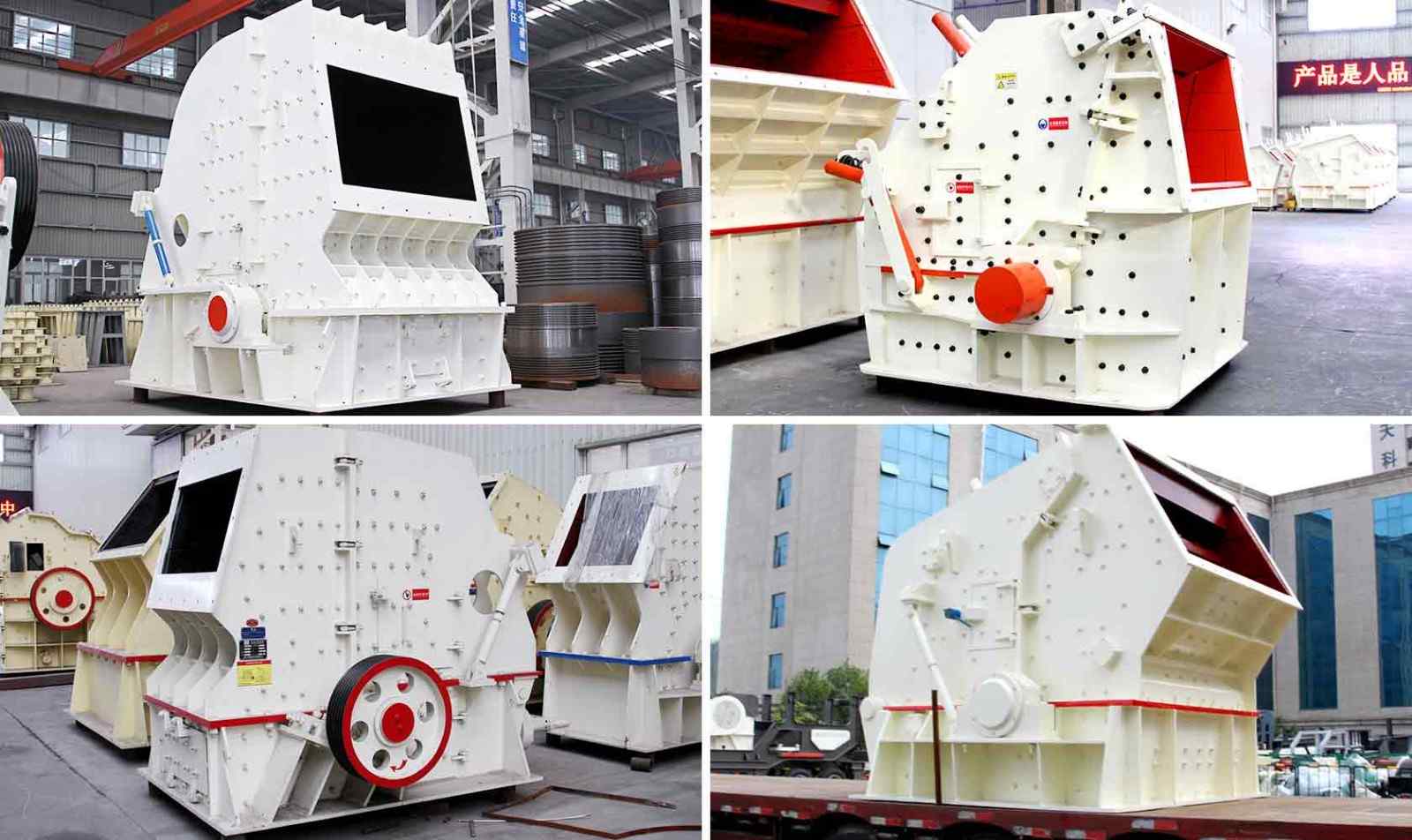

Impact crusher is used for the secondary crushing process of the whole crushing production line. Large-scale impact crushing machine is also available for the coarse crushing. The secondary impact crusher is widely used in the railway, highway, hydropower, construction materials and other industry fields for crushing materials whose length is less than 500mm and compressive strength is less than 350 MPa, such as iron ore, bluestone, construction waste, gangue, quartz, calcite, limestone, cement concrete granite, etc.
Effective dealt with the material of high moisture content and prevention against the feed blocking can guarantee the energy conservation and environment protection of the impact crusher.
Without too much limitation on the material, the impact crushing machine can dispose different rigidity material.
Particle size adjustment is flexible. Any particle size is available just by adjustment of the rotor speed. The operation of the impact crushing machine is simple and easily understood.
Little abrasion of its vulnerable component reduces the repair process, improving the production efficiency and strengthening the economic benefits of the impact crusher manufactures.
The perfect after-sale service of Fote machinery can extend the equipment usage life. Fote machinery escorts for the long term usage of your equipment.
| Model | Specification （mm） |
Feed opening （mm） |
The Maximum Feeding Size （mm） |
Capacity （t/h） |
Power （kw） |
Overall dimension （L×W×H） （mm） |
Total weight （t） |
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 2330×1660×2300 | 12 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-55 | 2370×1700×2390 | 15 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 2680×2160×2800 | 17.7 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 80-180 | 6P 132 | 2650×2460×2800 | 22.4 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 100-280 | 6P 200 | 3180×2720×3120 | 27 |
| PF-1320 | Φ1300×2000 | 993×2000 | 500 | 140-380 | 6P 250 | 3220×3100×3120 | 34 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 200-550 | 4P 315-400 | 3959×3564×3330 | 50.6 |
| PF-1820 | Φ1800×2000 | 1260×2040 | 800 | 400-800 | 4P 630-710 | 4400×3866×4009 | 83.21 |
| Model | Feed opening （mm） |
The Maximum Feeding Size （mm） |
Capacity （t/h） |
| Φ1000×700 | 400×730 | 300 | 30-70 |
| Φ1000×1050 | 400×1080 | 350 | 50-90 |
| Φ1250×1050 | 400×1080 | 350 | 70-130 |
| Φ1250×1400 | 400×1430 | 350 | 80-180 |
| Φ1320×1500 | 860×1520 | 500 | 100-280 |
| Φ1300×2000 | 993×20000 | 500 | 140-380 |
| Φ1500×2000 | 830×2040 | 700 | 200-550 |
| Φ1800×2000 | 1260×2040 | 800 | 400-800 |
Note:Processing Capacity May Vary With Different materials and Feeding Sizes.
