[Production Capacity: 1-2200t/h]
[Feeding Size: 120-1200mm]
[Handing Materials: limestone, granite, concrete, dolomite, pebble, cobble, basalt, quartz, diabase, gravel, cement clinker, iron ore, gold ore, copper ore, construction waste, etc]

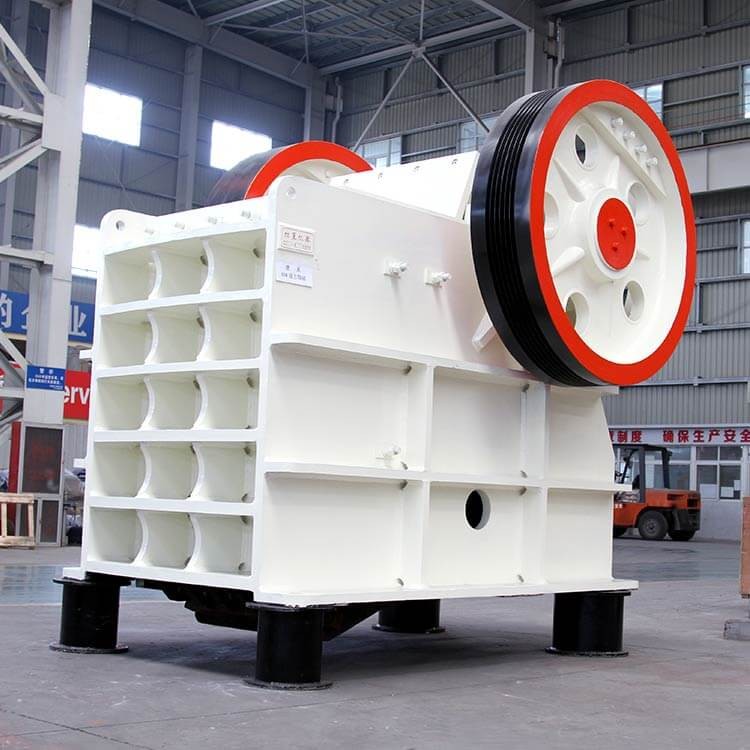

Jaw crusher is the mineral crushing equipment which is widely used and has the best sales volume in the current mining market. It is available for materials whose pressure intensity is less than 320 MPa, such as calcite, river gravel, quartz stone, coal gangue, limestone, bluestone, iron ore, copper ore, basalt, granite, construction waste and glasses, etc. Nowadays, jaw rock crusher machine is widely used in the mining, metallurgy, construction material, highway, railway, water conservancy and chemical industries.
Made of the German new-developed super durable materials, the vulnerable assembly parts of the jaw crusher has obvious advantages of abrasive resistance, corrosion resistance and tenacity, which guarantees the lower fault rate and the more reliable quality of the primary jaw crushing machine.
With the deep crushing cavity design and no dead crushing space, the jaw crusher has a huge crushing efficiency. The special updating increases the effective length of the tooth profile plate. This kind of jaw crusher has a huge production capacity per unit of time, which is 3 times than the common jaw crusher.
Perfect after-sale service is the obvious advantage of Fote machinery. Owning the national exquisite after-sale service groups and the professional technical staff, Fote machinery provides the one package service including the installation, adjustment, test run, maintenance and repair of the jaw crusher, guaranteeing the trouble-free using experience.
|
Model
|
Feed opening
(mm） |
Max.feeding size
(mm) |
Adjusting range of discharge opening
(mm) |
Processing capacity
(t/h) |
Rotation speed of eccentric shaft
(r/min) |
Motor power
(kw) |
Total weight
(t) |
Dimensions
（L×W×H） (mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 4P 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 4P 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-21 | 300 | 6P 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-64 | 275 | 6P 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 6P 55 | 12 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 6P 55 | 15.8 | 2070×2000×1920 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-160 | 250 | 6P 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 8P 110 | 29 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 130-190 | 130-330 | 250 | 8P 110 | 29.8 | 2710×2430×2800 |
| PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 8P 110 | 30.7 | 2740×2430×2800 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 8P 110 | 31.5 | 2810×2430×2800 |
| PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 8P 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-380 | 200 | 8P 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 8P 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 6P 160-220 | 100.9 | 4200×3300×3500 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 8P 280-355 | 139 | 5160×3660×4248 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 6P 22 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 15.6 | 2720×1950×1600 |
|
Model
|
Max.feeding size
(mm) |
Adjusting range of discharge opening
(mm) |
Processing capacity
(t/h) |
| PE-150×250 | 125 | 10-40 | 1-3 |
| PE-200×300 | 180 | 15-50 | 2-6 |
| PE-200×350 | 180 | 18-70 | 3-10 |
| PE-250×400 | 210 | 20-60 | 5-21 |
| PE-400×600 | 340 | 40-100 | 16-64 |
| PE-500×750 | 425 | 50-100 | 40-110 |
| PE-600×750 | 500 | 150-200 | 80-240 |
| PE-600×900 | 500 | 65-160 | 50-160 |
| PE-750×1060 | 630 | 80-140 | 110-320 |
| PE-800×1060 | 640 | 130-190 | 130-330 |
| PE-830×1060 | 650 | 160-220 | 150-336 |
| PE-870×1060 | 660 | 200-260 | 190-336 |
| PE-900×1060 | 685 | 230-290 | 230-390 |
| PE-900×1200 | 750 | 95-165 | 220-380 |
| PE-1000×1200 | 850 | 195-265 | 315-500 |
| PE-1200×1500 | 1020 | 150-350 | 400-800 |
| PE-1500×1800 | 1200 | 220-350 | 500-1000 |
| PEX-150×750 | 120 | 18-48 | 8-25 |
| PEX-250×750 | 210 | 25-60 | 13-35 |
| PEX-250×1000 | 210 | 25-60 | 16-52 |
| PEX-250×1200 | 210 | 25-60 | 20-61 |
| PEX-300×1300 | 250 | 20-90 | 16-105 |
Note:Processing Capacity May Vary With Different materials and Feeding Sizes.
FTM Machinery is a manufacturer of high-end mining machinery in Asia.
FTM Company lays much emphasis on the quality and clients. We serve clients with the quality guideline of being responsible for every working procedure, every product and every client.
