[Production Capacity:10-585t/h]
[Feeding Size: <55mm]
[Handing Materials: pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone]

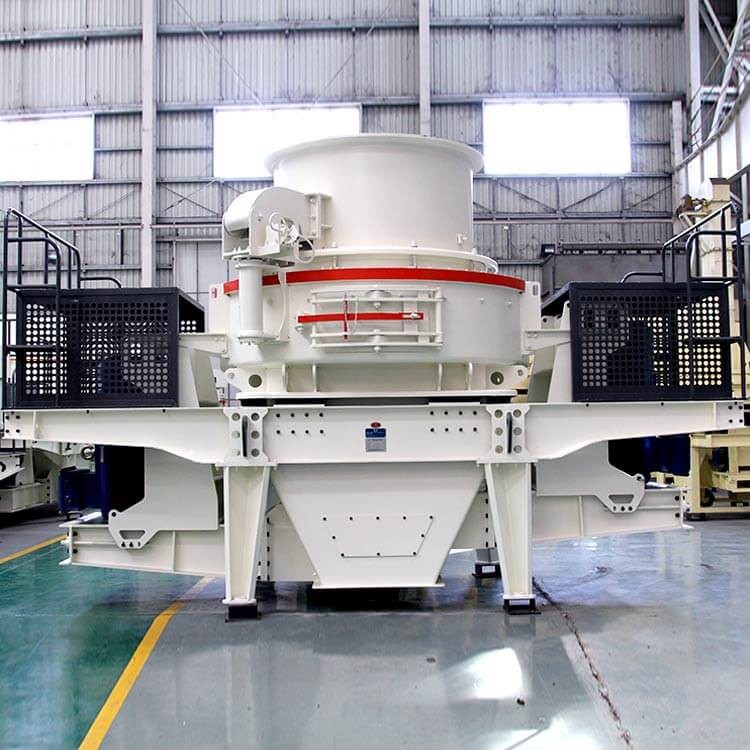

Sand making machine is used in crushing and plastic process of the medium hardness and extra hardness materials. In the engineering field, sand maker is the ideal production equipment of the mechanism sand, cushion material, asphalt concrete, and cement concrete aggregate. Suitable to more than 1000 materials, such as pebble, limestone, Quartz, basalt, calcite, ore and bauxite, the sand crusher can provide high quality sand aggregate for road, dam, city construction, railway, bridges, airport runway, municipal garden and other fields.
compared with same type of sand making machines, there is 30% production improvement of the VSI sand crusher.
there is a lower maintenance frequency and shorter repair time of the VSI artificial sand maker.
there is 25% lower energy consumption of the new type of sand maker.
the perfect crushing and impact angle, the proper material impact velocity design and the wear-resistant parts reduce 30% running costs compared with the national same type sand maker, which all decrease the using costs and improve the benefits rates of this VSI sand crusher.
| Model specification |
Max.feeding size （mm） |
Power （kw） |
Rotation speed of impeller （r/min） |
Capacity （t/h） |
Overall dimension （L×W×H） （mm） |
| FTM-06 | 35 | 2P 37-55KW | 2000-3000 | 12-30 | 2500×1620×2600 |
| FTM-07 | 45 | 4P 55-75KW | 1500-2500 | 25-55 | 2700×1760×2800 |
| FTM-09 | 50 | 4P 110-150KW | 1200-2000 | 55-100 | 3900×2000×3070 |
| FTM-10 | 60 | 4P 150-180KW | 1000-1700 | 100-160 | 4600×2350×3450 |
| Model specification |
Capacity （t/h） |
| FTM-06 | 12-30 |
| FTM-07 | 25-55 |
| FTM-09 | 55-100 |
| FTM-10 | 100-160 |
Note:Processing Capacity May Vary With Different materials and Feeding Sizes.
FTM Machinery is a manufacturer of high-end mining machinery in Asia.
FTM Company lays much emphasis on the quality and clients. We serve clients with the quality guideline of being responsible for every working procedure, every product and every client.
