[Production Capacity: 50-500t/h]
[Feeding Granularity: 60-660mm]
[Handing Materials: pebble, granite, basalt, limestone, gravel, calcite, quartz stone, dolomite, andesite, bluestone, concrete, iron ore, gold ore, copper ore, diabase, coal, etc.]

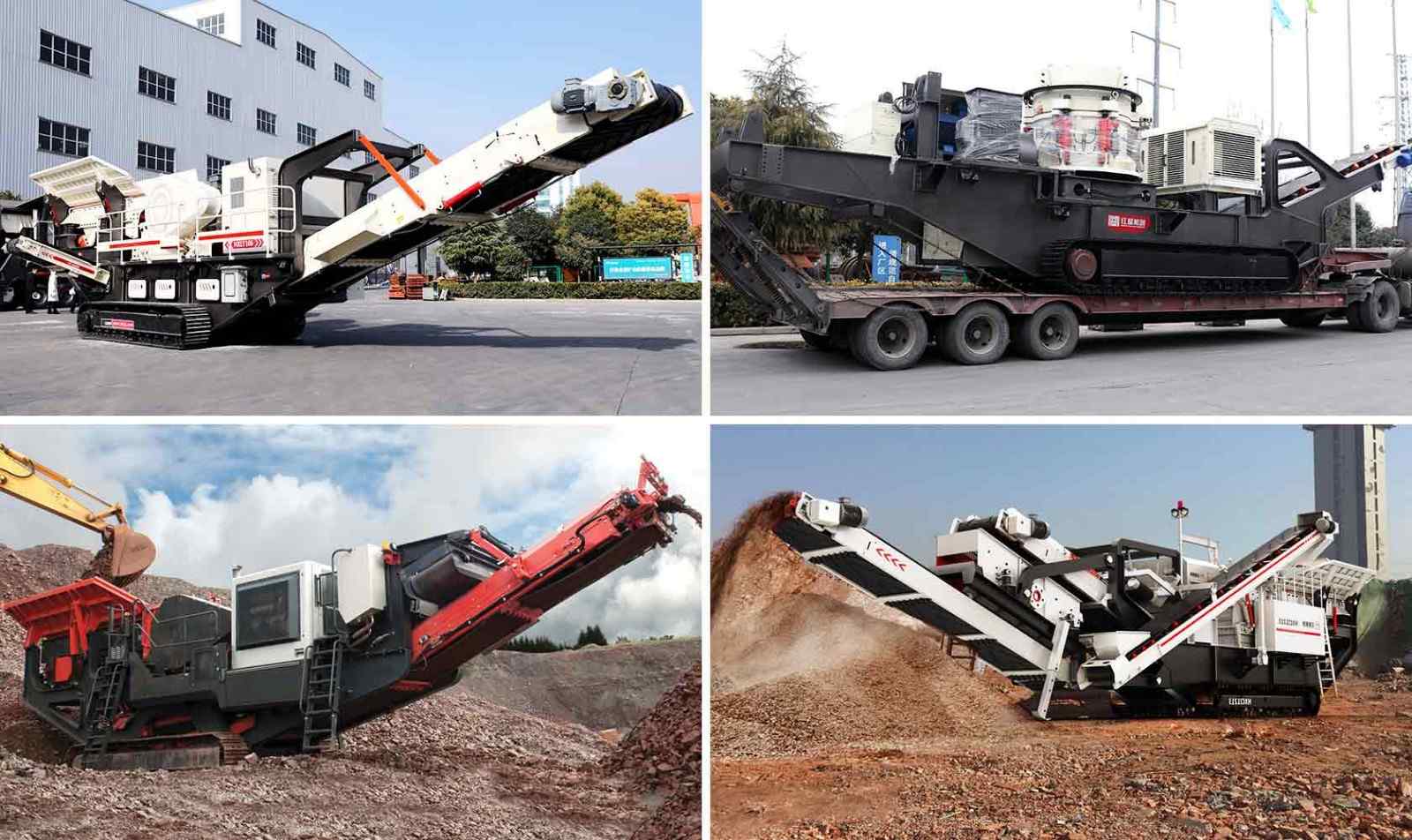

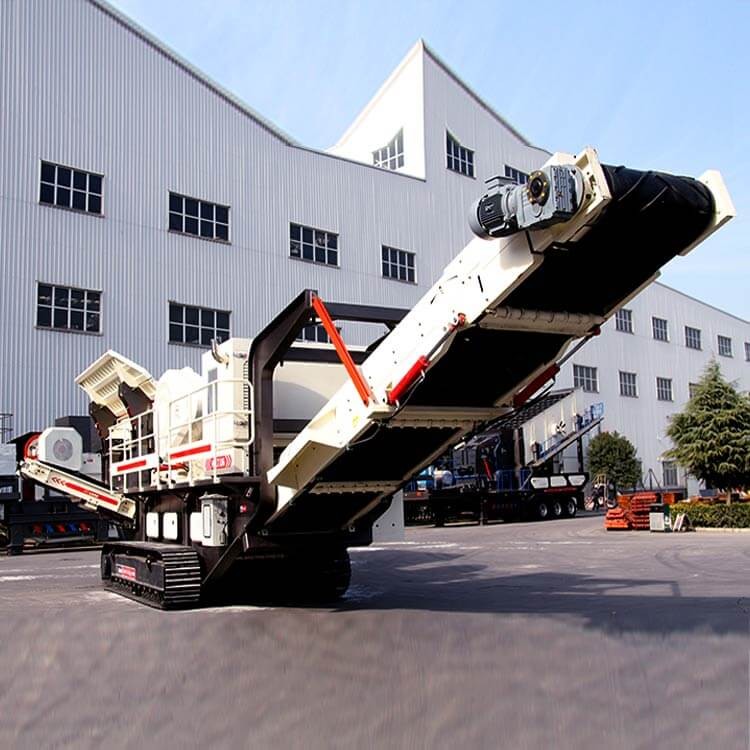

Tracked mobile crusher is one type of crawler automotive chassis mobile crushing and screening equipment that is driven by full hydraulic. Without the limitation of terrain condition, the tracked mobile crusher can arrive at any location of the workplace. Nowadays, tracked mobile crusher is widely used in the road and bridge construction, urban construction, metallurgy, energy and other departments for material crushing and screening operation.
Its diesel engine with strengths of low oil consumption and noise is the stable, economic and environmental protection power source. Equipped with military low-temperature preheating start device, its engine can run smoothly on the serious working site of -25℃ temperature.
Chassis design is the all-stiffness ship type structure which has advantages of high intensity, low ground pressure, strong passing ability and good adaptability to terrain of mountain and wet land.
Selected with mature products of Fote Machinery of its crushing and screening equipment, the tracked mobile crusher has features of compact structure, stable performance, high efficiency and reliability.
| Classification of items |
A type Dual power crawler type mobile feeding and screening plant |
B type Dual power crawler type mobile feeding and screening plant |
|||||
| models | Y3S154GL | Y3S184GL | Y3S186GL | Y3S154BL | Y3S184BL | Y3S186BL | |
| Vibrating screen(mm) |
3YZS1548 | 3YZS1848 | 3YZS1860 | 3YZS1548 | 3YZS1848 | 3YZS1860 | |
| Main belt conveyor |
Belt conveyor feeding | Sorting and feeding | |||||
| Belt conveyor |
Feeding belt conveyor |
B1000×4M | B1000×4M | B1200×4.5M | B1200×3M | B1200×3M | B1200×3M |
| Main belt conveyor |
B800×5M | B1000×5M | B1000×5M | B1000×8M | B1200×8M | B1200×9M | |
| Under vibrating screen |
B800×4.5M | B1000×4.5M | B1000×5.5M | B800×7M | B1000×7M | B1000×8M | |
| Left side-opening belt conveyor |
B500×7.3M | B500×7.3M | B650×7.3M | B500×7.3M | B500×7.3M | B650×7.3M | |
| Right side-opening belt conveyor1 |
B500×7.3M | B500×7.3M | B650×7.3M | B500×7.3M | B500×7.3M | B650×7.3M | |
| Right side-opening belt conveyor2 |
B500×7.3M | B500×7.3M | B500×7.3M | B500×7.3M | B500×7.3M | B650×7.3M | |
| Genset（kw） | 120 | 120 | 120 | 120 | 120 | 120 | |
| Transportation length（mm） |
12300 | 12300 | 13500 | 12000 | 12000 | 13200 | |
| Transportation width（mm） |
2700 | 2920 | 2920 | 2900 | 3150 | 3150 | |
| Transportation height（mm） |
3900 | 3900 | 3900 | 3600 | 3600 | 3700 | |
| Transportation Weight（t） |
28 | 30 | 34 | 28 | 32 | 35 | |
| Models | Transportation length(mm) |
Transportation width(mm) |
| Y3S154GL | 12300 | 2700 |
| Y3S184GL | 12300 | 2920 |
| Y3S186GL | 13500 | 2920 |
| Y3S154BL | 12000 | 2900 |
| Y3S184BL | 12000 | 3150 |
| Y3S186BL | 13200 | 3150 |
Note:Processing Capacity May Vary With Different materials and Feeding Sizes.
