[Production Capacity: 8-800m³/h]
[Feeding Size: ≤400mm]
[Handing Materials: limestone, granite, basalt, river gravel, dolomite, andesite, iron ore, etc]

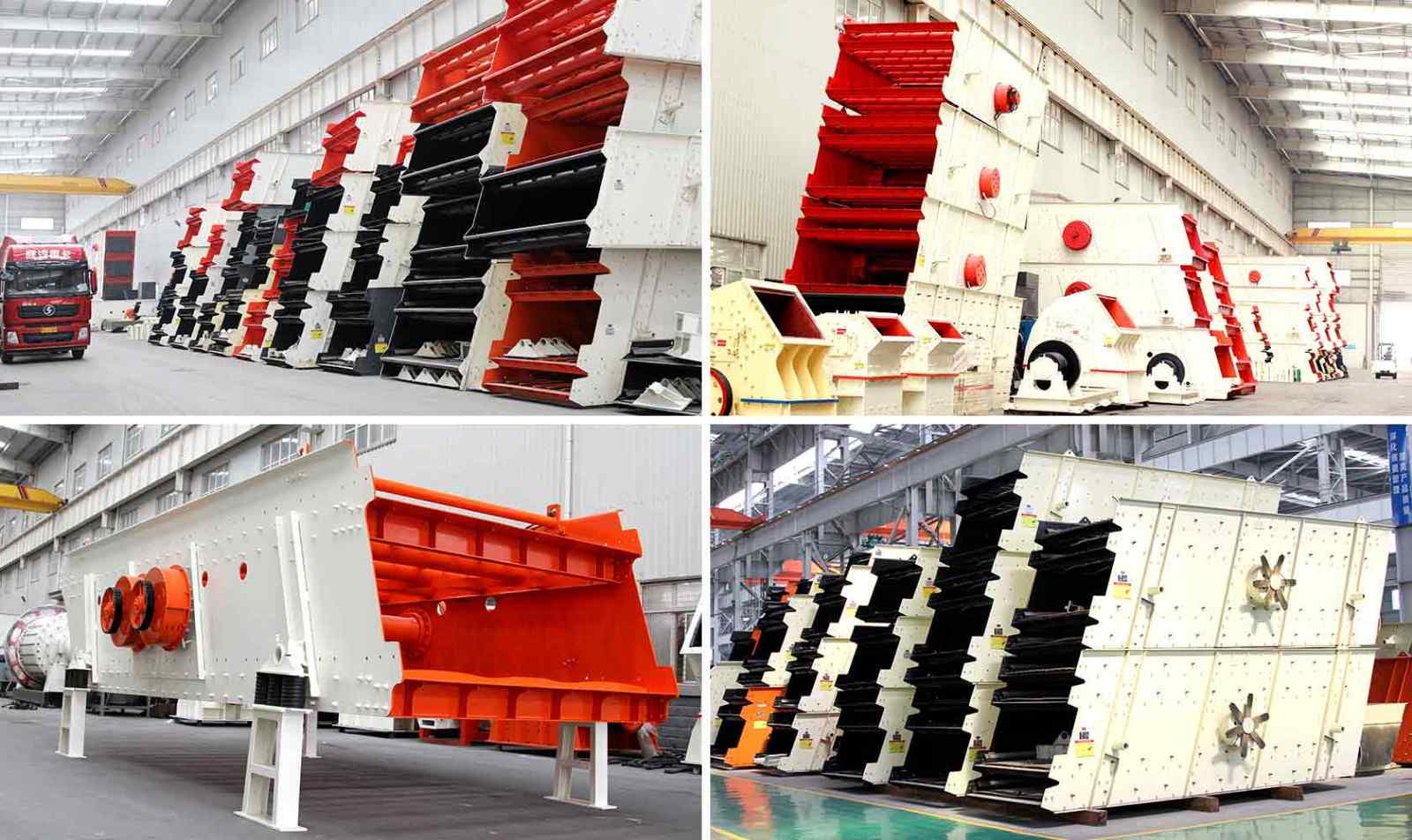

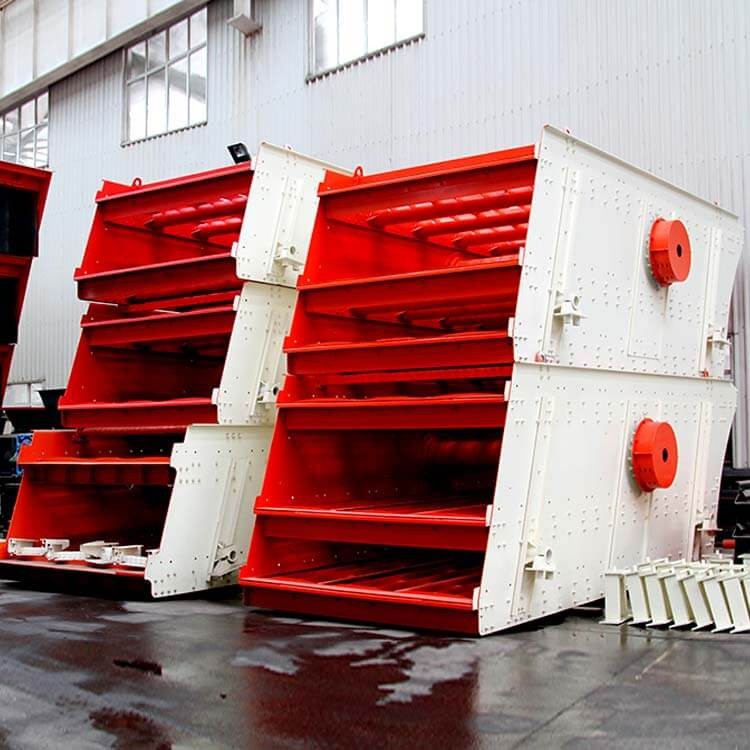

Vibrating screen separator is kind of vibrating screen equipment with the multi layer, high production capacity and high efficiency. Vibrating screen is widely used in the mining, building materials, chemical, energy, metallurgy, environmental protection industries for the screen classification of granite, limestone, basalt, bluestone, quartz, hornblende, diorite and other materials.
High screen strength of the sieve box reduces the sieve pore blocking phenomenon, improving the screening efficiency and producing capacity.
Simple structure and convenient screen surface replacement.
Low power consumption of the per ton material screening.
High disposal ability and screening efficiency.
Having the vibrating shaker screen of varying models and vibration ways custom-made.
| Model | Sieve specification(L×W) |
Sieve layer |
Mesh size |
Feeding size |
Processing capacity | Motor power |
Total weight | Vibrating frequency | Double amplitude | Sieve obliquity |
Dimensions (L×W×H) |
| （mm） | （mm） | （mm） | (t/h) | （kw） | （kg） | (Hz) | (mm) | （℃） | (mm) | ||
| ZSG1237 | 3700×1200 | 1 | 4-50 | ≤200 | 10-100 | 5.5×2 | 2250 | 16 | 6-8 | 15 | 3800×2050×1920 |
| 2ZSG1237 | 3700×1200 | 2 | 4-50 | ≤200 | 10-100 | 5.5×2 | 3345 | 16 | 6-8 | 15 | 3800×2050×2200 |
| ZSG1443 | 4300×1400 | 1 | 4-50 | ≤200 | 10-150 | 5.5×2 | 4100 | 16 | 6-8 | 15 | 4500×3040×2500 |
| 2ZSG1443 | 4300×1400 | 2 | 4-50 | ≤200 | 10-150 | 5.5×2 | 4900 | 16 | 6-8 | 15 | 4500×3040×2700 |
| 3ZSG1443 | 4300×1400 | 3 | 4-50 | ≤200 | 10-150 | 5.5×2 | 5870 | 16 | 6-8 | 15 | 4500×3040×2820 |
| 2ZSG1548 | 4800×1500 | 2 | 5-50 | ≤200 | 15-200 | 7.5×2 | 5836 | 16 | 8-10 | 15 | 4800×3140×2814 |
| 3ZSG1548 | 4800×1500 | 3 | 5-50 | ≤200 | 15-200 | 7.5×2 | 6900 | 16 | 8-10 | 15 | 4799×3140×3014 |
| 2ZSG1848 | 4800×1800 | 2 | 5-50 | ≤300 | 50-500 | 7.5×2 | 6489 | 16 | 8-10 | 15 | 4799×3440×2814 |
| 3ZSG1848 | 4800×1800 | 3 | 5-50 | ≤300 | 50-500 | 7.5×2 | 7750 | 16 | 8-10 | 15 | 4799×3440×3014 |
| 4ZSG1848 | 4800×1800 | 4 | 5-50 | ≤200 | 50-500 | 11×2 | 8300 | 16 | 8-10 | 15 | 4799×3440×3503 |
| 2ZSG1860 | 6000×1800 | 2 | 5-150 | ≤300 | 80-600 | 11×2 | 9950 | 16 | 8-10 | 15 | 6000×3440×3326 |
| Model | Sieve layer |
Mesh size |
Feeding size |
Processing capacity |
| （mm） | （mm） | (t/h) | ||
| ZSG1237 | 1 | 4-50 | ≤200 | 10-100 |
| 2ZSG1237 | 2 | 4-50 | ≤200 | 10-100 |
| ZSG1443 | 1 | 4-50 | ≤200 | 10-150 |
| 2ZSG1443 | 2 | 4-50 | ≤200 | 10-150 |
| 3ZSG1443 | 3 | 4-50 | ≤200 | 10-150 |
| 2ZSG1548 | 2 | 5-50 | ≤200 | 15-200 |
| 3ZSG1548 | 3 | 5-50 | ≤200 | 15-200 |
| 2ZSG1848 | 2 | 5-50 | ≤300 | 50-500 |
| 3ZSG1848 | 3 | 5-50 | ≤300 | 50-500 |
| 4ZSG1848 | 4 | 5-50 | ≤200 | 50-500 |
| 2ZSG1860 | 2 | 5-150 | ≤300 | 80-600 |
Note:Processing Capacity May Vary With Different materials and Feeding Sizes.
